Use Codex with DGrid

Use a DGrid Model API Key for model requests. A Management API Key is an administrative credential and cannot be used for this tutorial. Check that your key has available credits and access to the selected model.

Connect Codex CLI or Codex in the desktop app to DGrid using your API key, the Responses API base URL, and a complete model ID. The current desktop download is the ChatGPT desktop app, which includes Codex. Existing installations may still use the Codex app name. Get the app from the official download page. This guide uses openai/gpt-6-sol. Screenshots and the detailed desktop walkthrough use macOS; Windows installation and CLI instructions are also included.

Before you start

A DGrid account with available credits and access to a model that supports the Responses API.
A DGrid API key: sign in and create or copy a key from API Keys.
For installation through npm, Node.js with npm. The desktop method can be used independently of the CLI.

Keep your full key out of screenshots and shared files. Preserve the complete model ID, including its openai/ prefix.

If Codex reports a model metadata or catalog error, ask DGrid for catalog settings that match your Codex version. Custom model aliases may need matching catalog metadata; do not guess a catalog URL. See the official gateway setup guide.

Choose your setup

Method	Configuration	Selection
CLI	`~/.codex/dgrid.config.toml`	Run `codex --profile dgrid`.
Desktop on macOS	`~/.codex/config.toml`	The app reads its main configuration at startup.

The CLI profile selects DGrid for runs started with that profile. Editing the desktop main file changes the default provider for clients that read that file. If you depend on your current desktop setup, use another computer for the desktop walkthrough. Both methods use these connection settings:

Setting	Value
Model	`openai/gpt-6-sol`
Base URL	`https://api.dgrid.ai/v1`
Wire API	`responses`
Credential environment variable	`DGRID_API_KEY`

CLI
Desktop (macOS)

1. Install Node.js and Codex CLI

If needed, install the current LTS release from the Node.js download page. On macOS, run the macOS installer; on Windows, run the Windows installer. Standard installers include npm.Open Terminal on macOS or PowerShell on Windows and check:

node -v
npm -v

Install using the official Codex npm method.macOS: install into your user directory.

npm install -g @openai/codex --prefix "$HOME/.local"
export PATH="$HOME/.local/bin:$PATH"
codex --version

The PATH command applies to this terminal. Run it again in a new terminal, or add the directory to your shell’s PATH configuration.Windows PowerShell:

npm install -g @openai/codex
codex --version

If PowerShell blocks npm.ps1, use npm.cmd instead of npm.The CLI screenshots use codex-cli 0.163.0. The separate profile-file format below applies to Codex 0.134.0 and later; see configuration profiles.

2. Create a DGrid profile

Create ~/.codex/dgrid.config.toml on macOS, or %USERPROFILE%\.codex\dgrid.config.toml on Windows. Paste this content into that file:

model = "openai/gpt-6-sol"
model_provider = "dgrid"
model_reasoning_effort = "medium"
web_search = "disabled"

[model_providers.dgrid]
name = "DGrid"
base_url = "https://api.dgrid.ai/v1"
wire_api = "responses"
env_key = "DGRID_API_KEY"

On macOS, you can create and open the file using:

mkdir -p "$HOME/.codex"
touch "$HOME/.codex/dgrid.config.toml"
open -t "$HOME/.codex/dgrid.config.toml"

If the profile already exists, edit its matching settings. Save as plain text with straight quotation marks. env_key is the variable’s name: keep DGRID_API_KEY here.

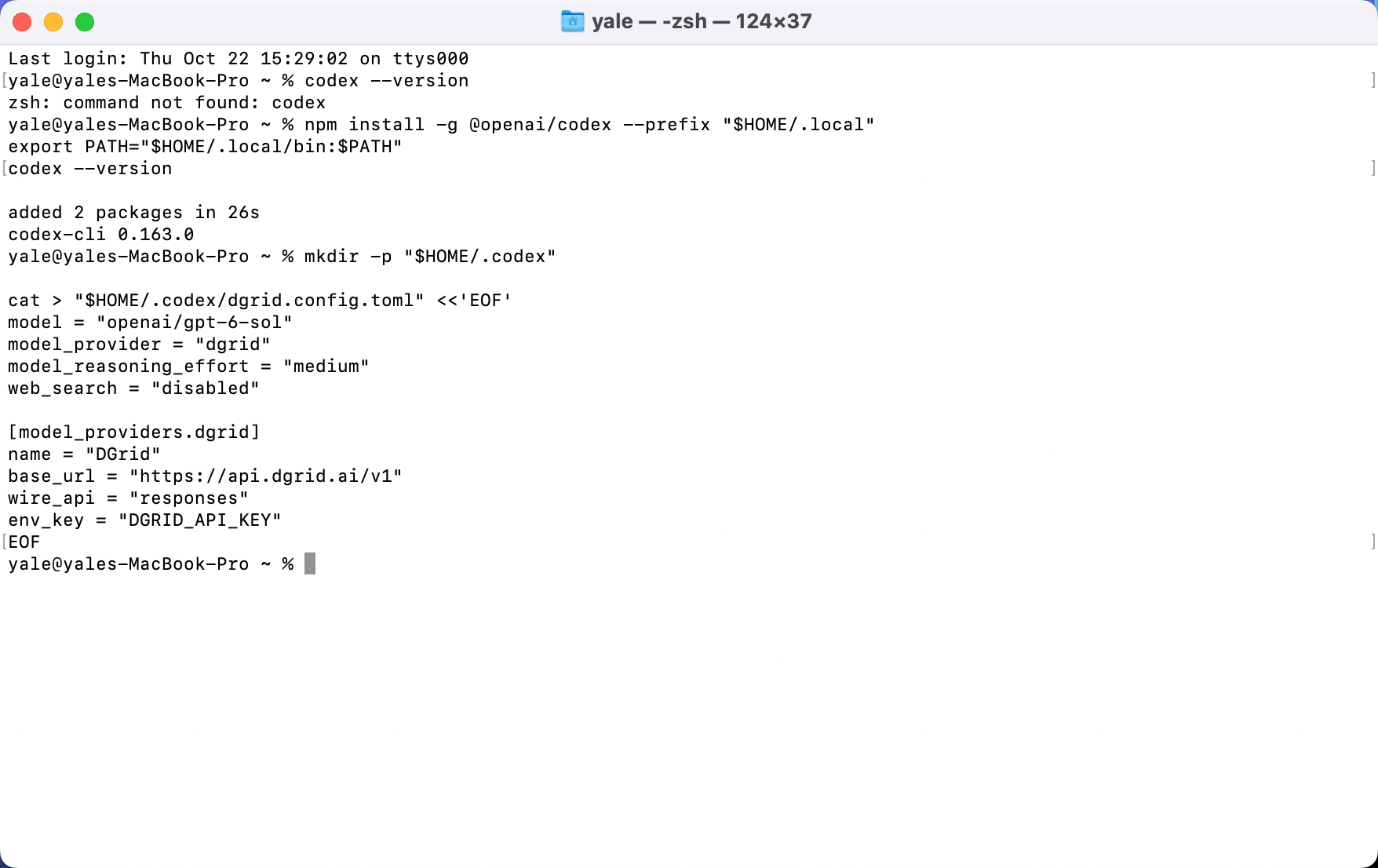

Codex CLI installed and a separate DGrid profile created in Terminal

3. Enter the API key

Use the same terminal where you will launch Codex.macOS Terminal with Zsh:

export DGRID_API_KEY
read -rs "DGRID_API_KEY?Paste your DGrid API key (hidden): "

Paste your key at the prompt and press Enter. No characters appear as you enter it. Wait for the terminal prompt to return before running the next command.Windows PowerShell: run the first line, enter the key at the masked prompt, then run the remaining lines.

$dgridSecureKey = Read-Host "Paste your DGrid API key (hidden)" -AsSecureString
$env:DGRID_API_KEY = [System.Net.NetworkCredential]::new("", $dgridSecureKey).Password
Remove-Variable dgridSecureKey

This sets the key for the current terminal session. A new terminal requires entering it again.

4. Launch Codex and send a message

On macOS:

mkdir -p "$HOME/dgrid-codex-demo"
cd "$HOME/dgrid-codex-demo"
codex --profile dgrid

On Windows PowerShell:

New-Item -ItemType Directory -Force "$HOME/dgrid-codex-demo" | Out-Null
Set-Location "$HOME/dgrid-codex-demo"
codex --profile dgrid

If Codex asks whether you trust the folder, confirm for this demo folder you created. Check the selected model is openai/gpt-6-sol. You can also use /status to inspect the session.Send:

Reply with exactly: DGrid connection successful

The expected response is:

DGrid connection successful

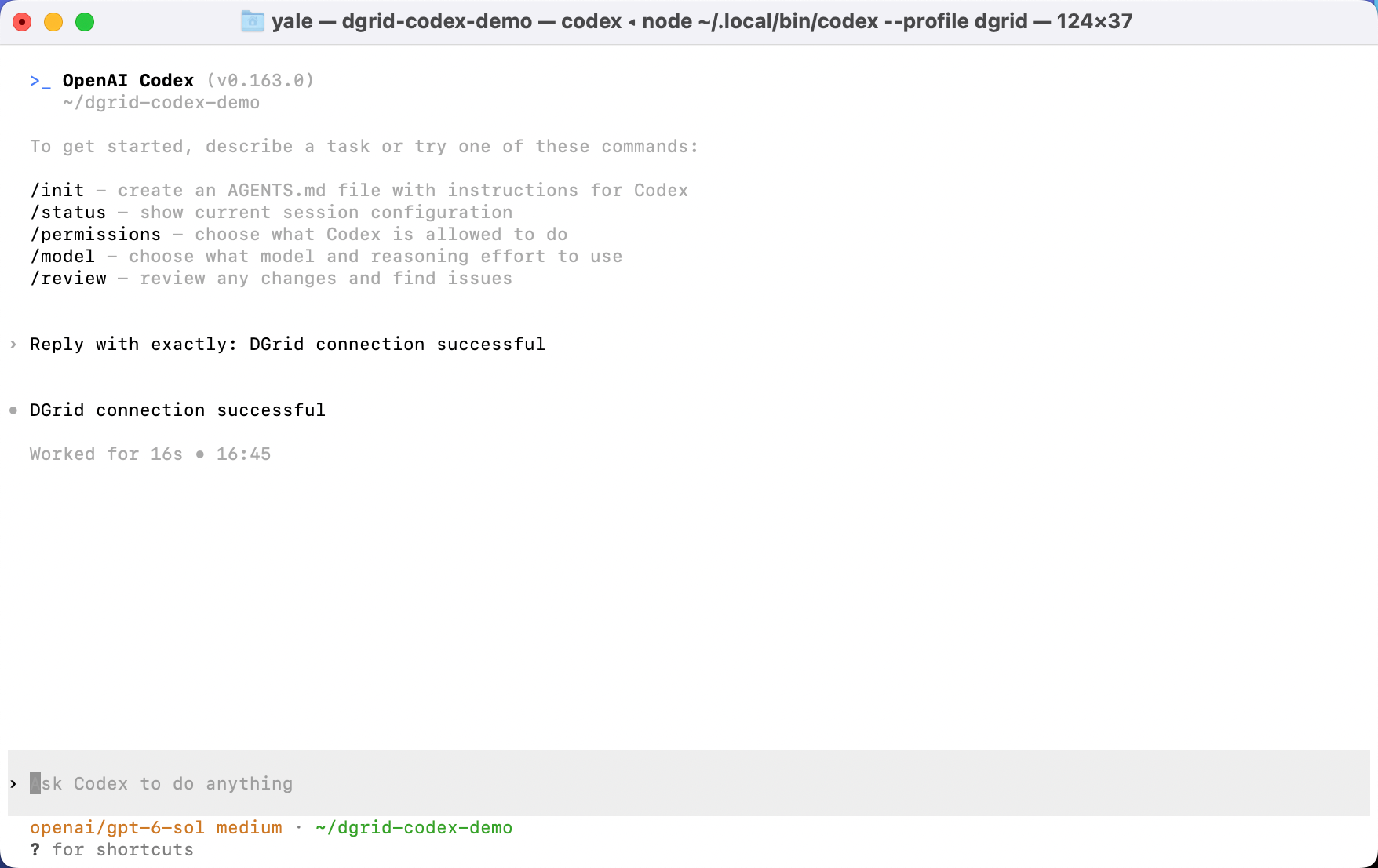

Codex CLI displaying the response with the DGrid model selected

If startup shows Running without the shared background server: --profile requires embedded mode., it describes how this profile session runs. Use F2 to view the warning and Esc to close it, then continue. Some Mac keyboards use Fn + F2.

1. Install the desktop app

Open the official download page and choose your operating system.

macOS: open the downloaded installer, drag the app into Applications, and open it.
Windows: run the downloaded installer and follow the installation prompts.

Choose the current app that includes Codex. The walkthrough below uses macOS and the application path /Applications/ChatGPT.app.For DGrid credentials, configure the provider and launch environment below. The initial OpenAI API key sign-in field does not itself set a DGrid base URL.

2. Configure DGrid in the main file

Fully quit the desktop app with Command + Q. Closing its window may leave it running.In macOS Terminal, run:

mkdir -p "$HOME/.codex"
touch "$HOME/.codex/config.toml"
open -t "$HOME/.codex/config.toml"

Use these settings in config.toml:

model = "openai/gpt-6-sol"
model_provider = "dgrid"
model_reasoning_effort = "medium"
web_search = "disabled"

[model_providers.dgrid]
name = "DGrid"
base_url = "https://api.dgrid.ai/v1"
wire_api = "responses"
env_key = "DGRID_API_KEY"

For an existing file, update matching top-level keys and place them before the first table header ([section]). Add the DGrid provider table at the end, or update it if present. Keep other settings and avoid duplicate keys or tables. Save as plain text with straight quotation marks.The app reads this main file. A CLI profile file alone does not select DGrid in the desktop app. Windows uses %USERPROFILE%\.codex\config.toml. See the official gateway setup guide.

3. Enter the key and launch the app

In macOS Terminal with Zsh:

export DGRID_API_KEY
read -rs "DGRID_API_KEY?Paste your DGrid API key (hidden): "

Paste the DGrid key and press Enter. When the terminal prompt returns, run this as a separate command in the same terminal:

open -a "/Applications/ChatGPT.app" --env "DGRID_API_KEY=$DGRID_API_KEY"

If your installation is named Codex.app, substitute its actual application path.If Terminal reports that the application was already running and additional environment variables could not be set, fully quit with Command + Q and repeat the launch command.The key is available to this launched app process. For a future launch from a new terminal, repeat the hidden key entry and launch command. Opening the app from the Dock does not supply a variable set only in this terminal.

4. Choose a project and send a message

Create a demo folder:

mkdir -p "$HOME/dgrid-codex-demo"

In the desktop app:

Click Choose project and select dgrid-codex-demo in your home folder.
Enter the prompt below.
Click the send arrow.

Reply with exactly: DGrid connection successful

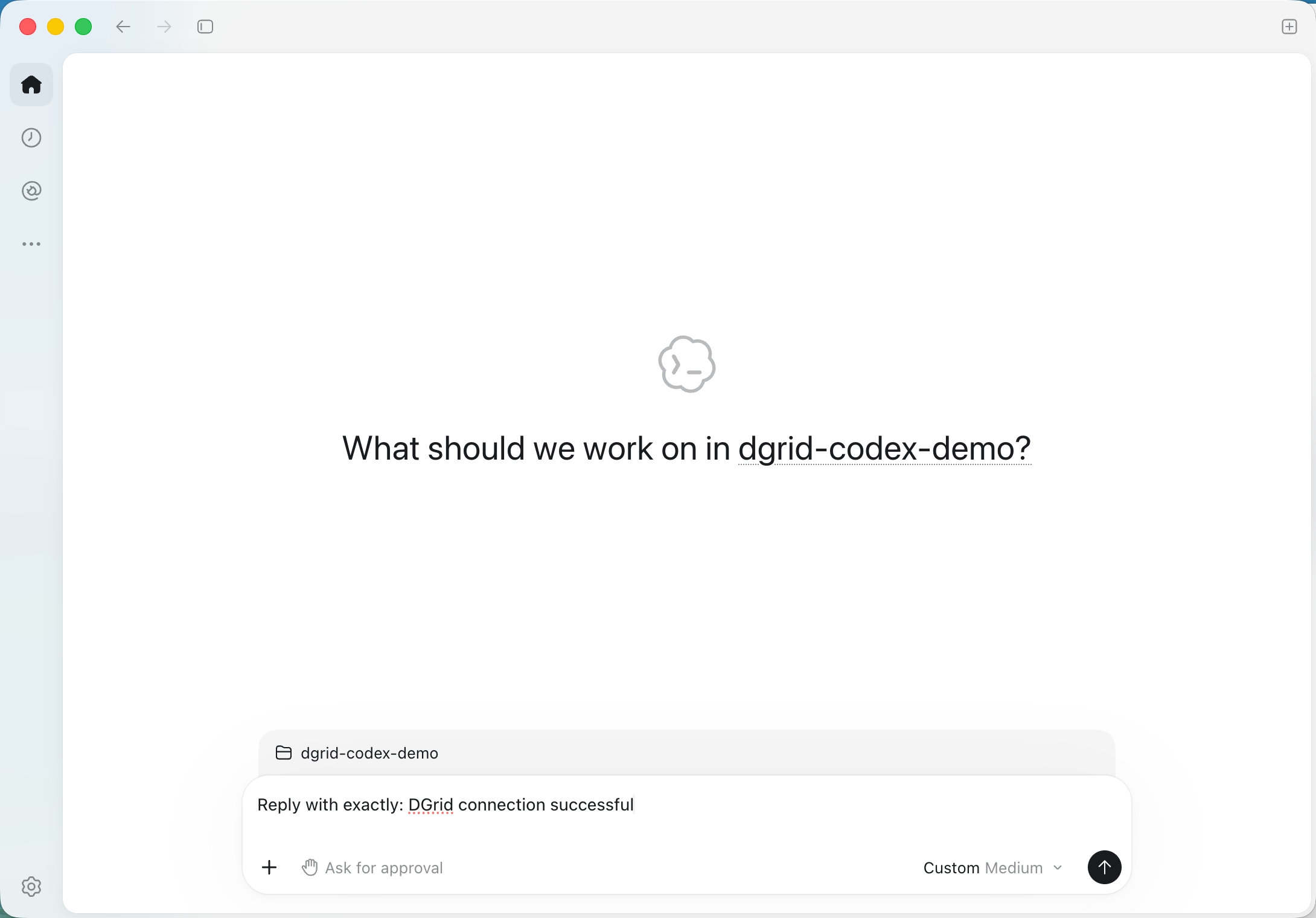

A project selected and the connection prompt ready to send in Codex

The expected response is:

DGrid connection successful

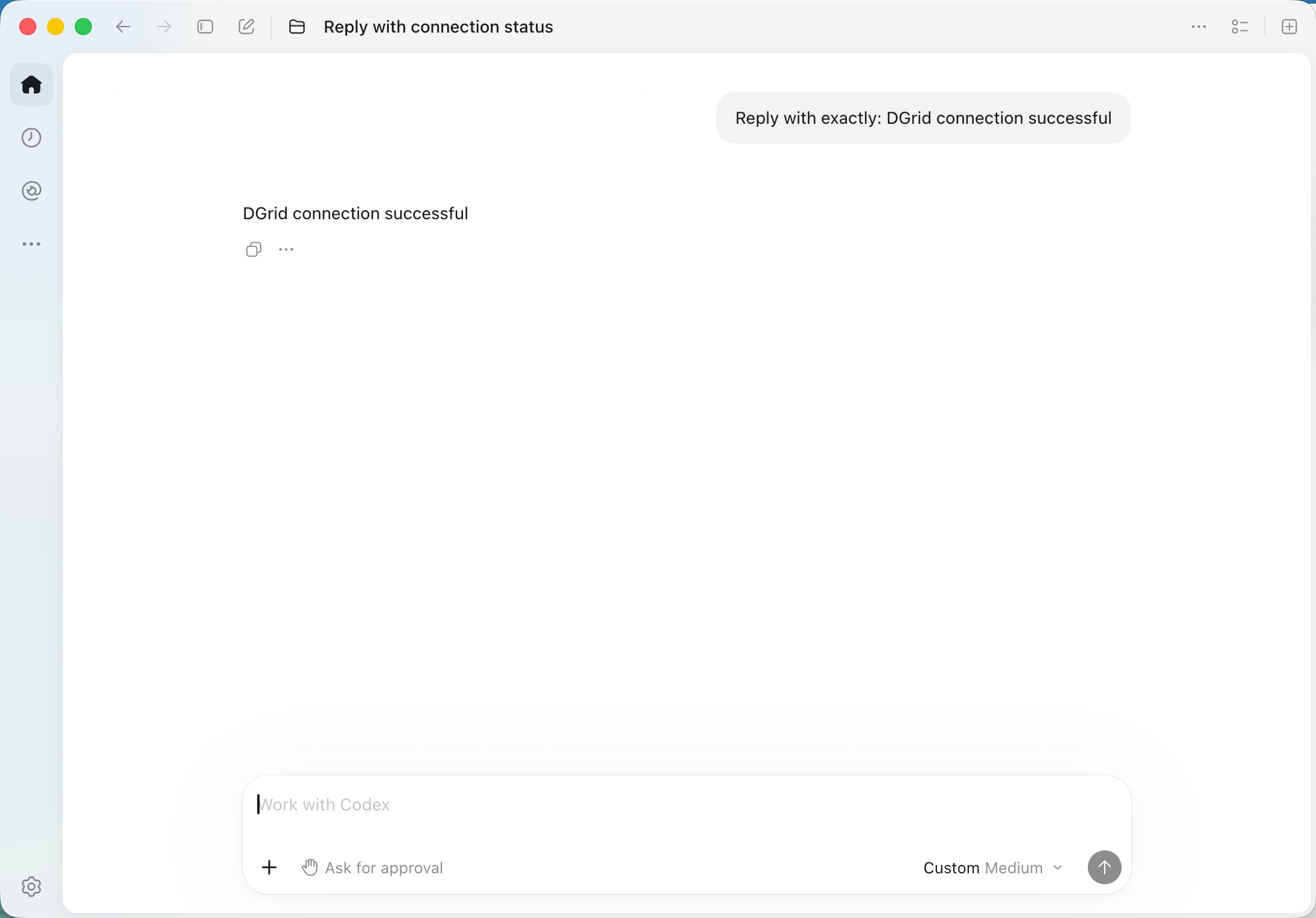

Codex desktop app displaying the model response

Some versions display a label such as Custom Medium. Check the complete model ID in your configuration and the corresponding DGrid request record to confirm the model and route used.

Confirm the request in DGrid

Open DGrid’s request history and find the matching request time and complete model ID. A completed request appears with Success status.

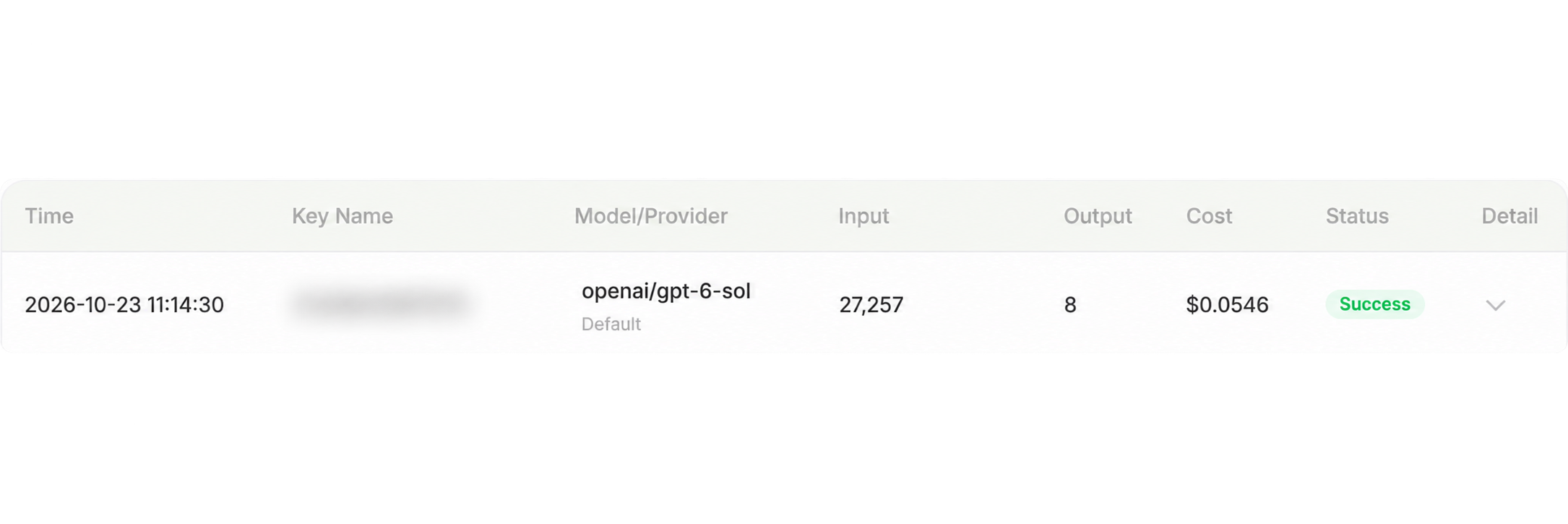

DGrid request history showing openai/gpt-6-sol and Success, with Key Name blurred

The Key Name is blurred for privacy. Token counts and costs vary with the model and the context sent by Codex.

Troubleshooting

Symptom	What to check
`codex: command not found`	Confirm installation completed. On macOS, run `export PATH="$HOME/.local/bin:$PATH"` in the current terminal.
Missing API key	Set the key in the terminal that launches the client. `env_key` names a variable; it does not set its value.
App already running; environment variables could not be set	Fully quit with Command + Q, then repeat the desktop launch command.
Desktop sign-in or request fails after opening from the Dock	Quit the app, enter the key in Terminal, and launch with `--env`.
Authentication or model access error	Check the DGrid key, credits, Responses support, and complete model ID.
Provider settings ignored	Use the user-level files above. Project-level `.codex/config.toml` cannot select a custom provider.
Return to an earlier desktop provider	Restore its model, provider, and authentication settings, then fully quit and reopen the app.

The Codex configuration reference lists provider settings. This guide covers connecting and receiving a response; tools, web search, and longer agent tasks depend on the selected model and gateway support.
